E-Line KD-III Busway
Flexibility in Rack Cabinet Power Feeding
Our new Data Rack Busway is the perfect solution for any scalable and flexible data center environment. The busway is especially optimized to perform in white space infrastructure applications.
Catalog
Data Rack Busway Systems 250A-800A
The KD-III data rack busway offers a highly flexible and reliable Busway system, with its open channel design. The data rack busway also has the capability to provide metering at the busway and tapoff box level in data center white space environments. Tap off boxes are able to be plugged-in, removed, and relocated anywhere along the busway while the equipment is energized, all while being vendor agnostic with regard to components for energy monitoring and circuit breaking. The customer has the option between Aluminum and Copper conductors, with up to 6 conductors in a busway run (3PH, 2N, 1 Ground or PE). In addition, while the mono-block joint design provides easy and secure connections for long life operations, IP 23D protection ensures high operation safety.
Why Data Rack Busway?
Data rack busway not only reduces the installation of power in data halls, but is also more flexible (allowing for moves, adds and changes) as well as more capable, with advanced circuit protection and metering options, than a traditional whip cabling setup.
Technical Features
- Plug-n-Play
- Al or Cu - up to 6 Conductors
- Whisker Free Tap-Off Contacts
- AC AC or DC Feed
- IP IP23D Protection

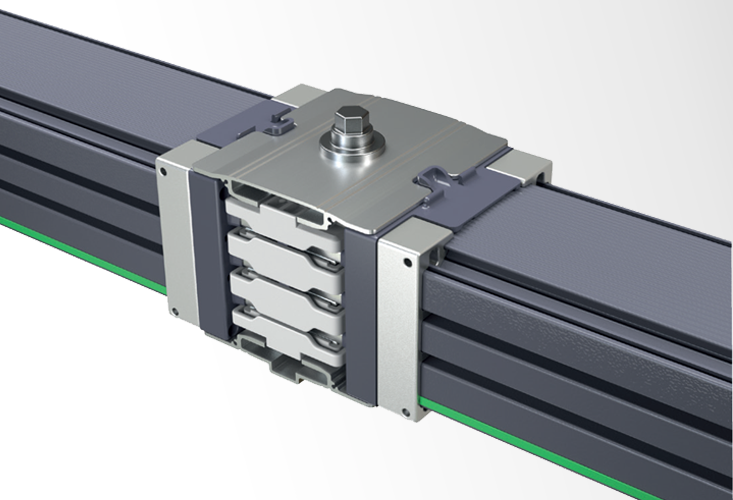

- Mono Block Joint Mechanism
- Snap-In Suspension Mechanism

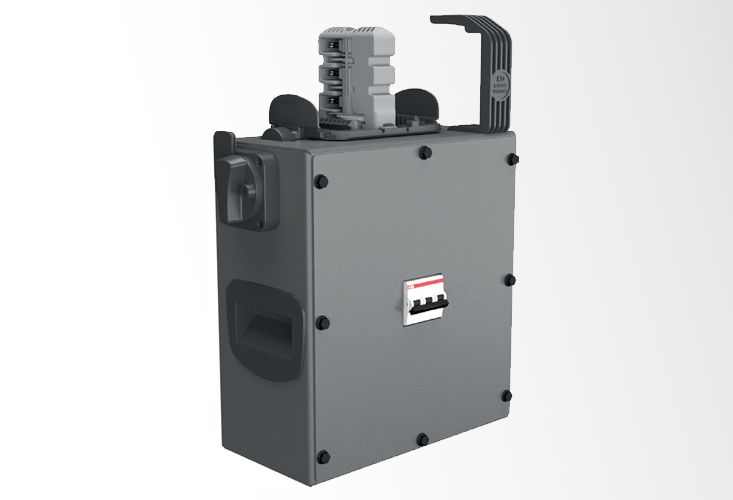

- KD-III Plug-in 125A Aluminum Case Tap Off Boxes
- Tap-Off Boxes with Safe Locking Mechanism
- Tap-Off Boxes Energy Monitoring with Vendor Neutral Components
Applications
- Data Centers - White Space Area for Standard and Non-Standard Cabinet Rows
- Data Centers - Low to Medium Range Power Distribution in White Space Areas
- Data Centers - Open Channel Busway for High Flexibility with Plug-n-Play Tap-Off Points
