E-Line KX-III Busway

400A to 6000A UL
Busway System - Quick and Easy Assembly

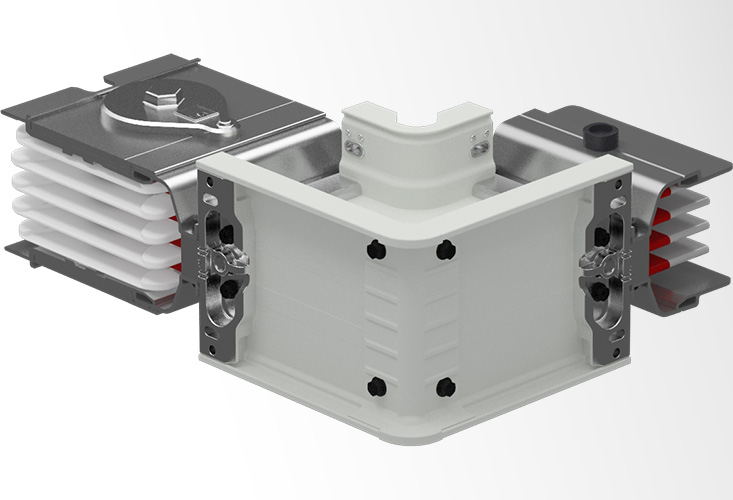

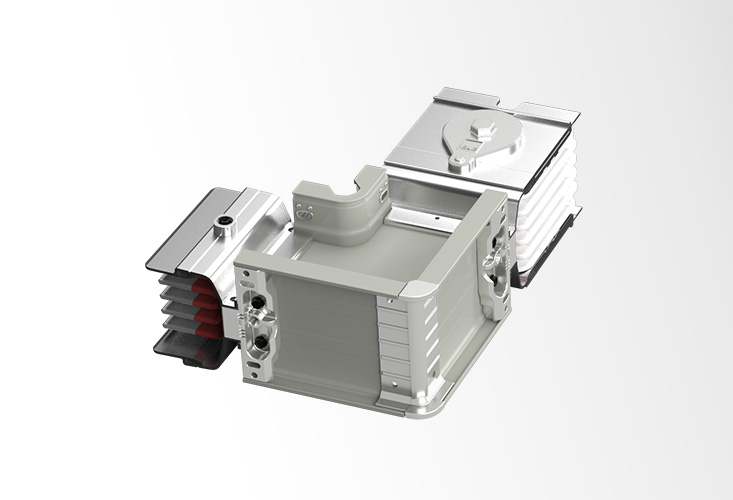

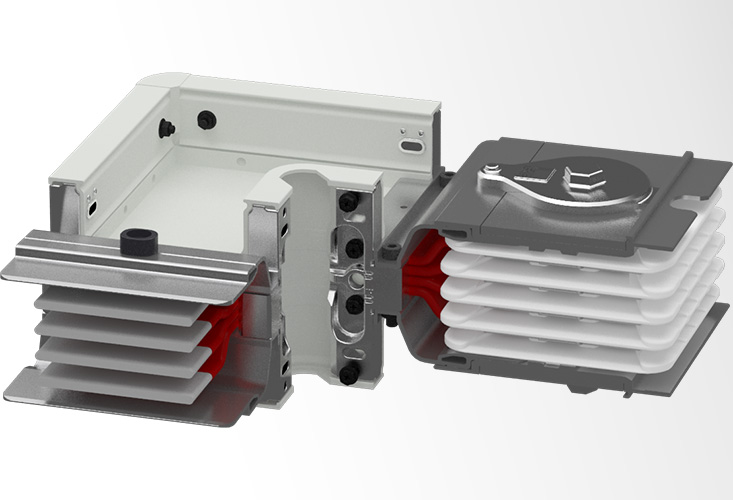

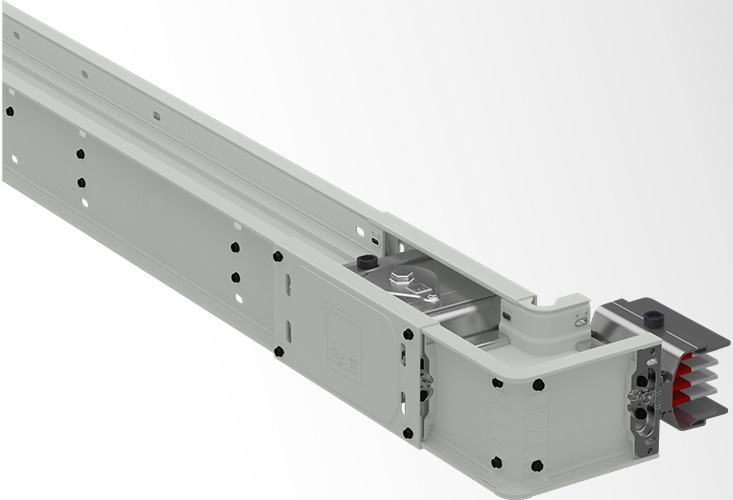

The KX-III Busway system is the most versatile product in the E-Line Busway series. The KX-III Busway is designed, with the latest innovative technologies such as special epoxy coating and mono-block joint to have ratings from 400A to 6000A. The customer has the option to use copper or aluminum conductors in any configuration of the KX-III Busway.

The KX-III Busway system is used in a variety of vertical and horizontal electrical distributive applications, and typically used in the transmission of energy in facilities with high power applications.The KX-III Busway comes in 2 types, the feeder and plug in. The feeder busway provides power transmission where tap off boxes are not required. The plug-in type can have up to 10 windows per 10 foot section for attaching tap off boxes.

Since 1973 EAE busway system allows users to distribute electrical energy safely experience in design and manufacturing of busway systems.

Catalog
Catalog 265

Tap-off Boxes

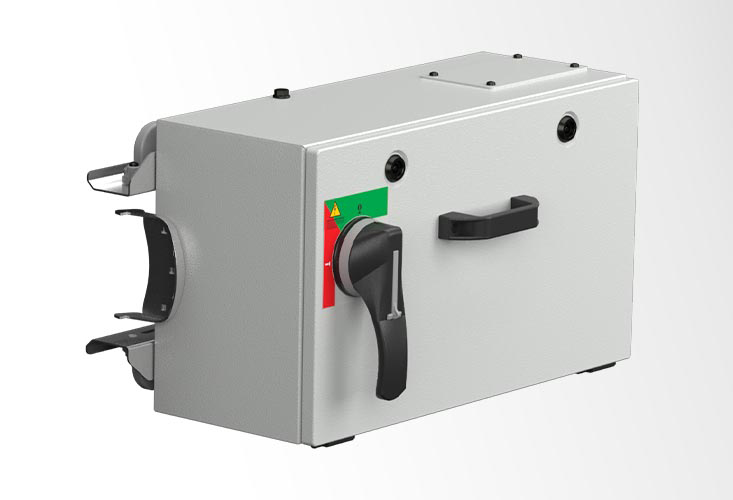

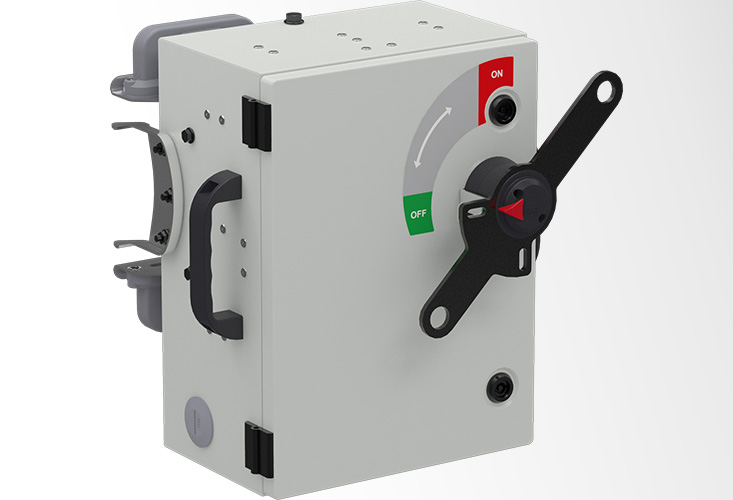

KXP Tap-off Boxes

160A, 250A, 400A and 600A plug-in -on type busway tap off boxes (Standard SYK switch or suitable for empty or including MCCB).

KXP Tap-off Box

Applications

Horizontal Applications

Power Busway System is a modular energy transmission and distribution system created by insulating current carrier Aluminium or Copper busway conductors placed in a closed body. The busway system is used to transmit energy to a point along the route within the facility, starting from a point such as a transformer, generator or panel, or to distribute energy to the loads in the facility by receiving energy from the current receiving points on it with tap off boxes.

Horizontal Applications

Advantages of E-Line KX-III Busway

  • High short circuit resistance due to compact construction
  • Less voltage drop in comparison to cable systems
  • Special alloy metal enclosure provides higher mechanical strength and causes less electromagnetic interference.
  • Better cooling capability
  • High resistance to fire
  • Seismic resistance
  • Protection Degree (IP55 standard and IP67 optional)
  • Requires less space in comparison to cable systems

Usage Areas

  • Production areas in factories
  • Textile factories
  • Iron-steel and Industrial glass factories
  • Automotive and automotive sub-industries
  • Malls
  • Exhibition areas
  • High rise buildings
  • Hotels
  • Hospitals
  • Business Centres
  • Data Centers
  • Oil & Gas Factories
