E-Line KY-S Busway
Lighting Busbar Trunking (25A)

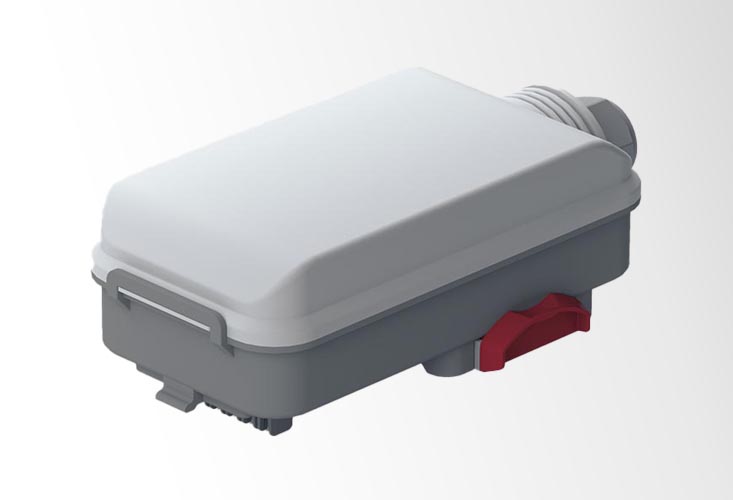

KY-S Lighting Busway with its 10A – 16 A tap-off plugs and 32A tap-off boxes are being produced fully automated machines that uses most recent technology in accordance with ISO 9001 and with its quality assurance system certification. Products has been designed in accordance with IEC 61439-6 and tested. Busway housing is being produced as pre-galvanized sheet also if requested it could be produced as painted with RAL 7038 color.
Catalog
Product Usage Specifications
E-Line KY-S
It is used for provide electrical energy to single circuit lighting circuits and emergency lighting circuits with machines that requires low-power at factories, offices and autoparks.
For a single housing, it has 2,3,4,5 and 6 conductors with the oppurtunity to use as single and three phase.
E-Line KY-S Lighting Busway DALI
It is used for provide electrical energy to single circuit DALI controlled automation circuits and lighting fixture.
For a single housing, it has 6 conductors with the oppurtunity to use as single and three phase.
KY-S Lighting Busway Advantages and Features
- Copper conductor with current rating as 25A
- Inside of a busway housing, different number of conductor options up to 6 on a side.
- If requested, RAL 7038 electrostatic oven dried busway housing on the galvanized sheet.

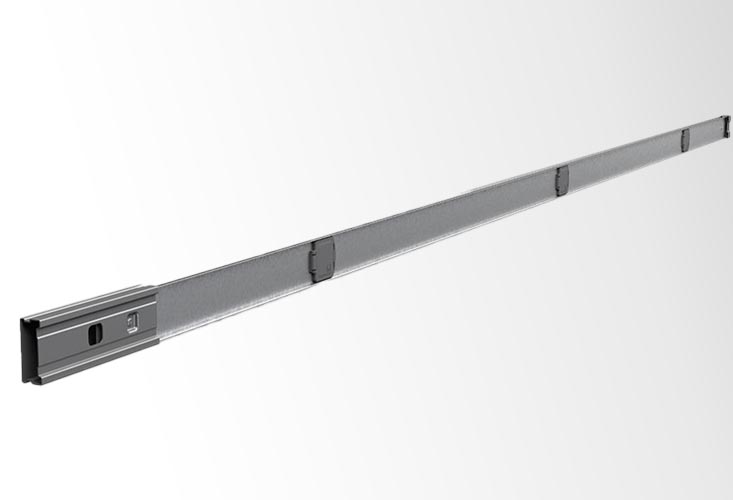

- There are 3 output windows at one side on a standard 3 meter length busway as well as 4 output windows at one side on a 4 meter length busway and 1 output window at one side on a 1 meter length busway.
- Slider type joint cap at joint points on the busway can ease montage process without a need of screw or any hand tool.
- It is coated fully with non-flame propagating isolation material on tin-plated copper conductors.
- Has a structure to minimize current resistance at joint points and blocks overheating at contact points with its silver plated spring contacts.
- Tap-off plugs that has different colors depending on phases with special lock mechanism.
- Tap-off plugs and boxes are designed to prevent misuse and shock by electricity by different addressing structures.
- Different colors have been used on tap-off plugs and boxes which are located on cap, housing and cable entry point connectors to make it clear to see phase, function and features of it.

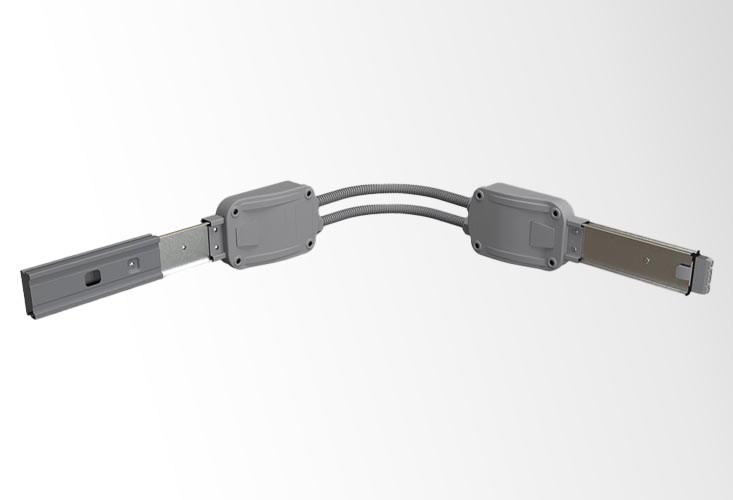

- It is compatible to use in all inside building ceilings, wall and column applications with flexible turn modules and its attachments.
- It has clean earth CPE option.
- IP55 protection class.
Usage Areas
- Small businesses
- Local production areas
- Workshops
- Textile Facilities
- Automotive facilities
- Automotive sub-industries
- Small-sized industry facilities
- Malls
- Data Centres
- Supermarkets
