Our Stainless Steel Cable Ladder KCA OG from our cable ladder series is an ideal cable transportation system for the protection of large and bulky cables. Cable ladders are typically manufactured in 3-meter lengths, with 6-meter lengths available upon request. This product sets the industry standard for cable support systems worldwide. It boasts a unique combination of high strength, flexibility, and lightweight design. It is engineered for the highest load resistance in its class, offering excellent impact resistance and durability against environmental forces.
Catalog
Filters
KCA Class Product Usage Features
Tested according to IEC 61437 standard and certified by DEKRA.
Tested according to NEMA VE-1 standard and certified by DEKRA.
H150 mm cable ladders have a carrying capacity of NEMA 20C.
H100 mm cable ladders have a carrying capacity of NEMA 12C.
Considering industrial plant projects such as petrochemistry, it meets the following specifications:
Since the cable tray is manufactured in 6 meter lengths in individual pieces, it can be suspended at intervals of 6 meters.
Tested and certified according to NEMA VE-1. Has a carrying capacity class of NEMA 20C.
Tested and certified according to IEC 61537.
Has superior cable carrying capacity due to its extra heavy duty structure design.
Superior quality hot dipped galvanized, hot dipped galvanized by utilizing superior silicon steel, manufactured from 316L quality stainless raw material.
Superior production capacity (6 meters per minute).
Expeditious delivery and shipping times.
Flexible manufacturing solutions for various requests.
KCA Solutions with all the features listed above can be manufactured with the KCA OG series cable tray/ cable ladder systems.

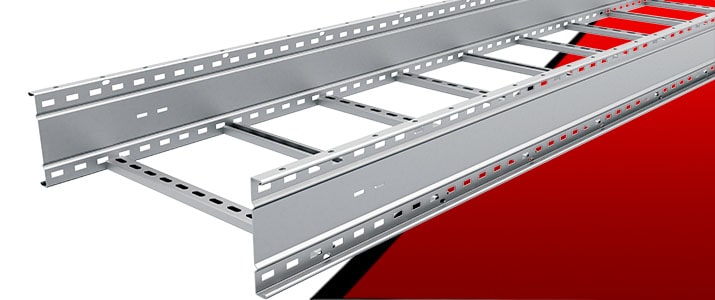

KCA OG Cable Ladder
Wastewater Treatment Plant.
Power Plants.
Mining Industry.
Chemical Plants.
Land / Marine Installations.
Tunnel.
Farms and Food Production.
Solar Energy And Photovoltaic Applications.
Technical Features
KCA OG Cable Ladder
KCA OG is designed to be used as cable transport systems in petrochemical plants, power plants, and heavy industrial facilities.
Has high load carrying capacity due to its specially designed side walls.
Steel side walls are reinforced with feeder lines.
Standard lengths: 3 meters and 6 meters.
Since the cable tray is manufactured in 6-meter individual pieces, it can be suspended at intervals of 6 meters, thereby reducing the required number of support materials.
Tested under severe conditions.
Successfully tested under the conditions specified in the DIN 4102-12 (E90) standard, withstanding 1000°C fire conditions for 90 minutes.
