The E-Line KM Cable Ladder has the capability of folding in one direction. This allows it to occupy much less space in shipping and storage areas compared to conventional cable ladder systems, thereby contributing to a reduction in costs.
The ladder type cable tray permits maximum free air flow between cables. The heavy-duty cable ladder series KM is a complete cable support system that can be easily assembled on site.
Catalog
Filters
KM Cable Ladder Features
Foldable in one direction: This design offers advantages in shipping and storage.
Material: KM cable ladders are made from pre-galvanized sheet metal.
Galvanization process: The sheet metal undergoes a hot-dip galvanization process, with a total coating thickness of approximately 10-14μm on both sides of the material.
Standards compliance: Produced in accordance with TS EN 10346 and TS EN 10143 standards.
Corrosion resistance: Suitable for use in areas classified under C1 and C2 corrosion categories.

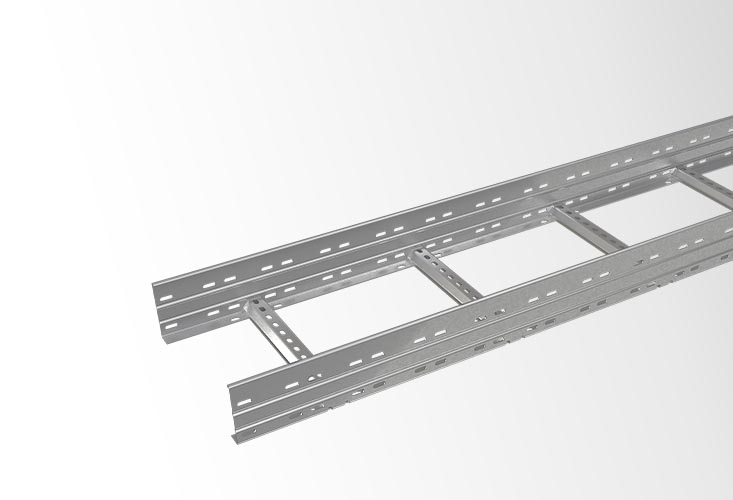

KME Cable Ladder Features
Material: KME cable ladders are made from black sheet metal.
Galvanization process: The sheet metal undergoes a hot-dip galvanization process, resulting in a total coating thickness of approximately 45-55μm on both sides of the material.
Standards compliance: Produced in accordance with TS EN ISO 1461 standard.
Corrosion resistance: Suitable for use in areas classified under C3, C4, C5, and C6 corrosion categories, with varying coating thickness and paint usage according to the corrosion category.
KM Cable Ladder Usage Areas
Parking Areas
Hotels
Factories and Industrial Facilities
Food Processing Facilities
Technical Features
KM Cable Ladder
Custom widths available: 700/800/900/1000 mm.
Standard length of 3000 mm (optional 6000 mm lengths).
Manufactured as pre-galvanized in compliance with TS EN 10143 - TS EN 10346 standards.
The strength (load carrying capacity) of the cable ladders is enhanced by the special design of the lateral walls.
Can be utilized in horizontal rack applications on lateral walls, offering significant cost advantages.
Equally spaced traverse structure at 300 mm intervals.
Provides more cable space compared to conventional ladders due to a unique traverse height system.
