KabinPLUS KL Colocation

KabinPLUS KL Series 19" Data Center Colocation Rack Cabinets have been designed to offer a multi-tenant housing with high flexibility and security in a single robust core construction for data center colocation environments.

GENERAL INFORMATION
DOCUMENTS
GALLERY

Side Panels: split panels – vertical or horizontal, lockable

Heights (in Rack Units)		Baying	Width	Depths
42U	2 x	1 bay of 20U	800 mm	1000/1100/1200 mm.
	2 x	1 bay of 21U	800 mm	1000/1100/1200 mm.
	3 x	2 bays of 13U each	800 mm	1000/1100/1200 mm.
	3 x	1 bay of 14U	800 mm	1000/1100/1200 mm.
	4 x	3 bays of 10U each	800 mm	1000/1100/1200 mm.
	4 x	1 bay of 9U	800 mm	1000/1100/1200 mm.
47U	2 x	1 bay of 22U	800 mm	1000/1100/1200 mm.
	2 x	1 bay of 23U	800 mm	1000/1100/1200 mm.
	3 x	3 bays of 15U each	800 mm	1000/1100/1200 mm.
	4 x	4 bays of 11U each	800 mm	1000/1100/1200 mm.

19" Independent Vertical Mounting Rails

Easy and independently adjustable for each bay, manually displaceable with U marking on both sides

Doors

19 inch rack rails - Vertical Mounting Rails

Single front and split rear doors toolless displaceable -ventilated by 85% perforation, opens to 180/270 degrees when bayed/not bayed

Top and Bottom Panels:

With 6 x knockout cable entry areas aligned on the cable ducts with brushes, also overhead cable management on the top panel as option.

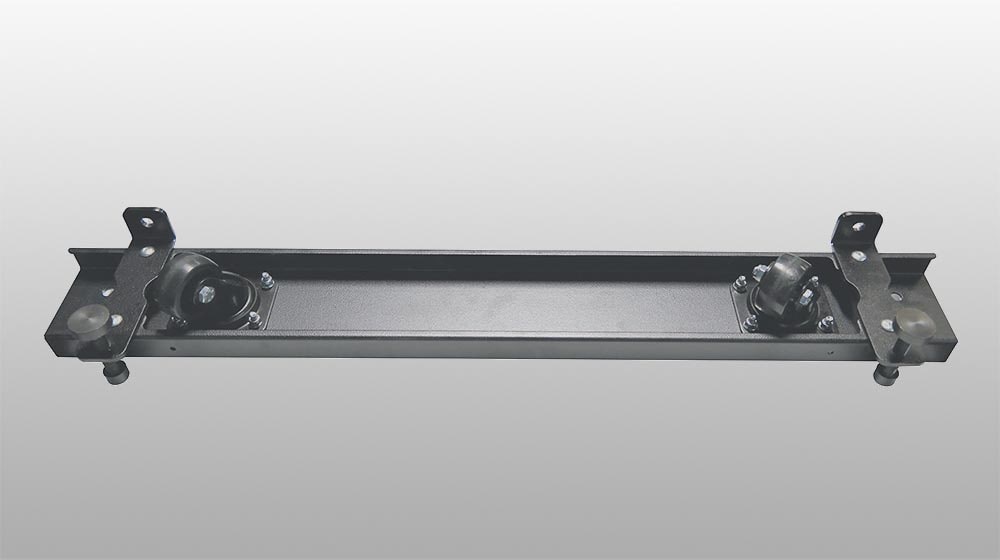

Levelling Feet & Castor Module:

Heavy duty easy drive levelling feet with castors

Baying Brackets

Easy baying on the front and back sides

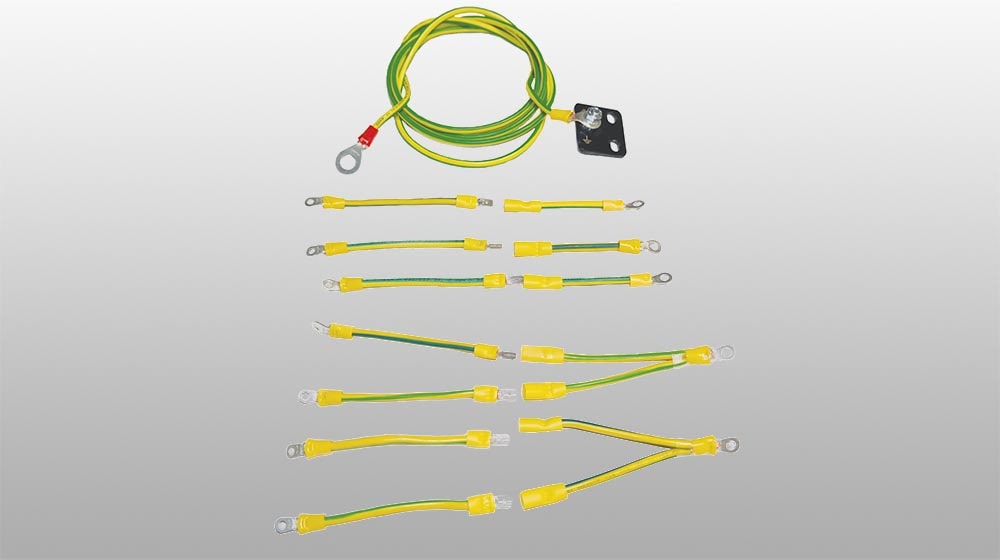

Electrical Bonding:

Full electrical bonding of the rack cabinet, doors-side & roof & bottom panels with the reference bonding point

Locking Mechanisms:

Various lock choices with open access connectivity

Conformity

IEC IEC 61587-1, UL 2416, IEC 60082-2, EIA 310-E, ISO 9227, ASTM B 117 (for mechanical properties)
IEC 61010-1, IEC 60950-1 (for electrical properties)

Load Carrying Capacity

1200 kg static load (according to IEC 61587-1)
1500 kg static load (tested for UL 2416)
1500 kg dynamic load (tested for UL 1678)

Cable Pathways With Common Ducting

All the cables can be installed in a side common duct with an individual brushed bay access to serve each bay independently by service providing company only and secured by locking mechanism with top and buttom cable entry points. Four (4) independent Common Ducts (2 x right + 2 x left) are deployable on a single colocation enclosure

Cable Pathways With Independent Ducting

The cable ducts are designed as independent cable pathways to accomodate cabling for each individual bay separately with top and buttom cable entry points. Each bay has its own brushed individual access to its independent cable duct area. Two (2) Independent Ducts (1 x right + 1 x left) are deployable on a single colocation enclosure.

Overhead (Roof) Cable Management

Toolless mounting of "M" shaped and "A" shaped separators & cable pathways

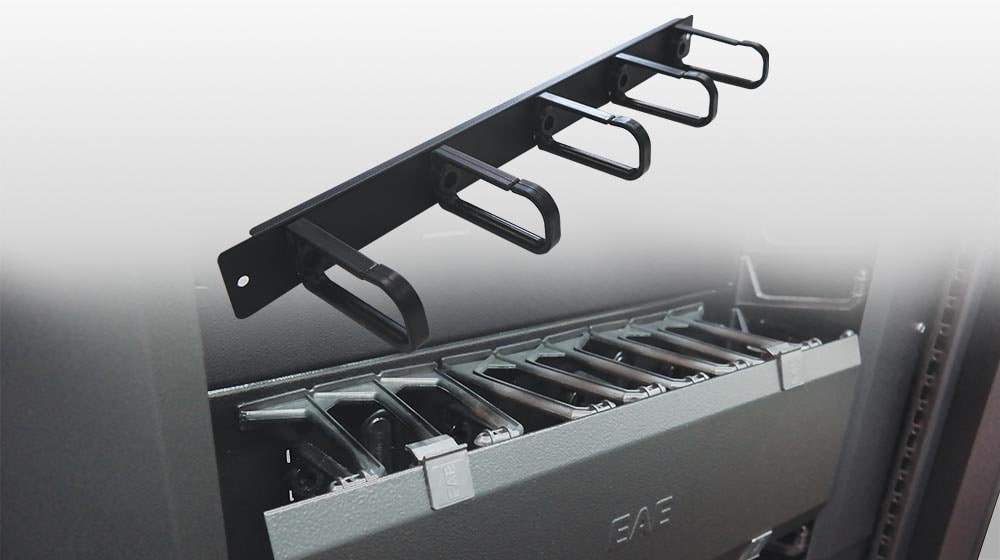

Vertical Cable Management

Plastic finger cable organizer, plastic ring cable organizer, metal ring cable organizer, finger cable duct organizer, vertical cable tray

Locking Mechanisms

For the physical security and monitored access to your critical infrastructure KabinPLUS KL 19" Data Center Colocation Rack Cabinets offer various locking mechanism and open access connectivity. Mechanical and electro-mechanical locking, keypad access, proximity card access, finger print, eye retina or hand geometry biometric access and their combinations are among the available choices..
